YMD40 V2 Mini Cute Air40 Walnut Wood Case DIY Mechanical Keyboard（Support QMK VIA ——Type C Soldering PCB Wooden Case）

Package Included

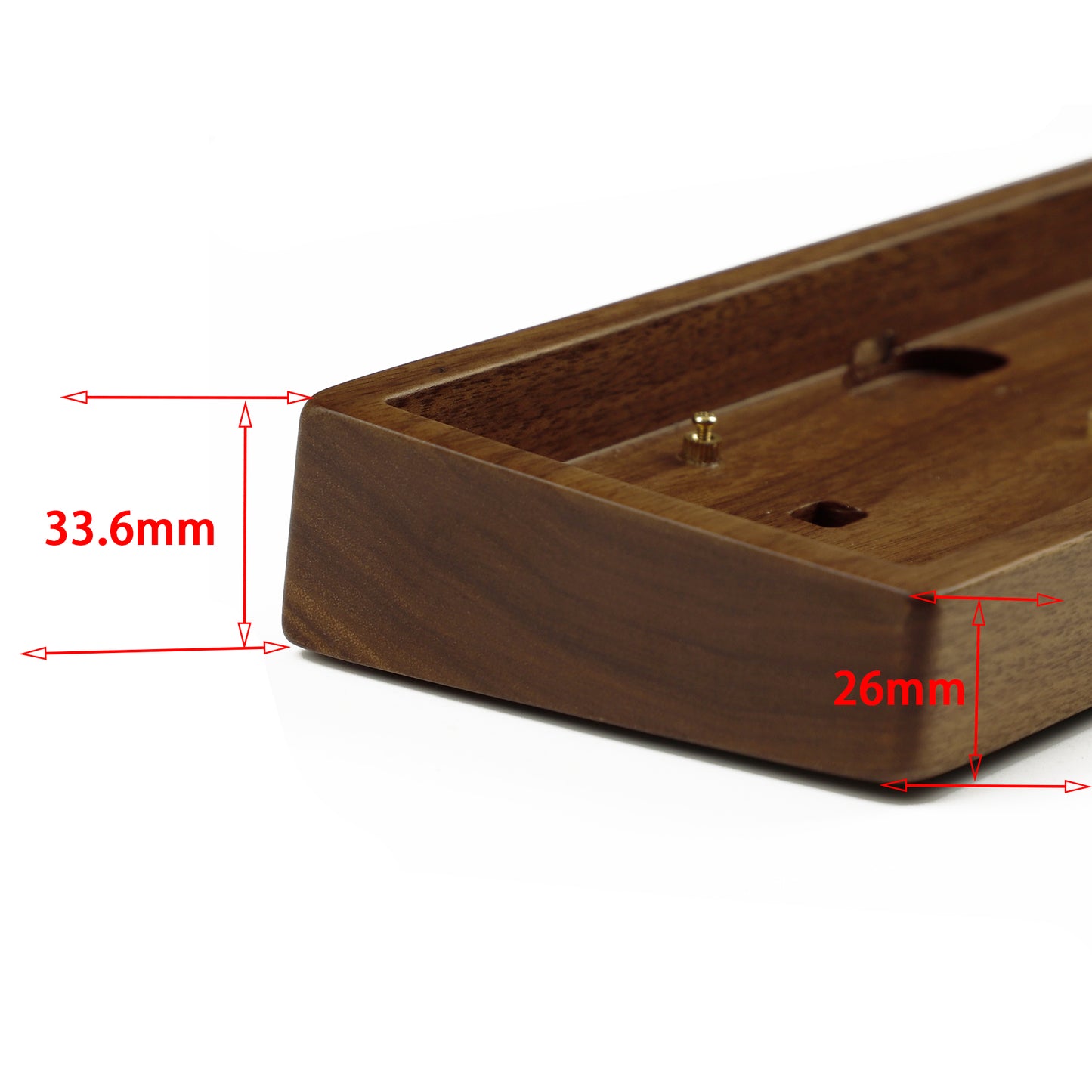

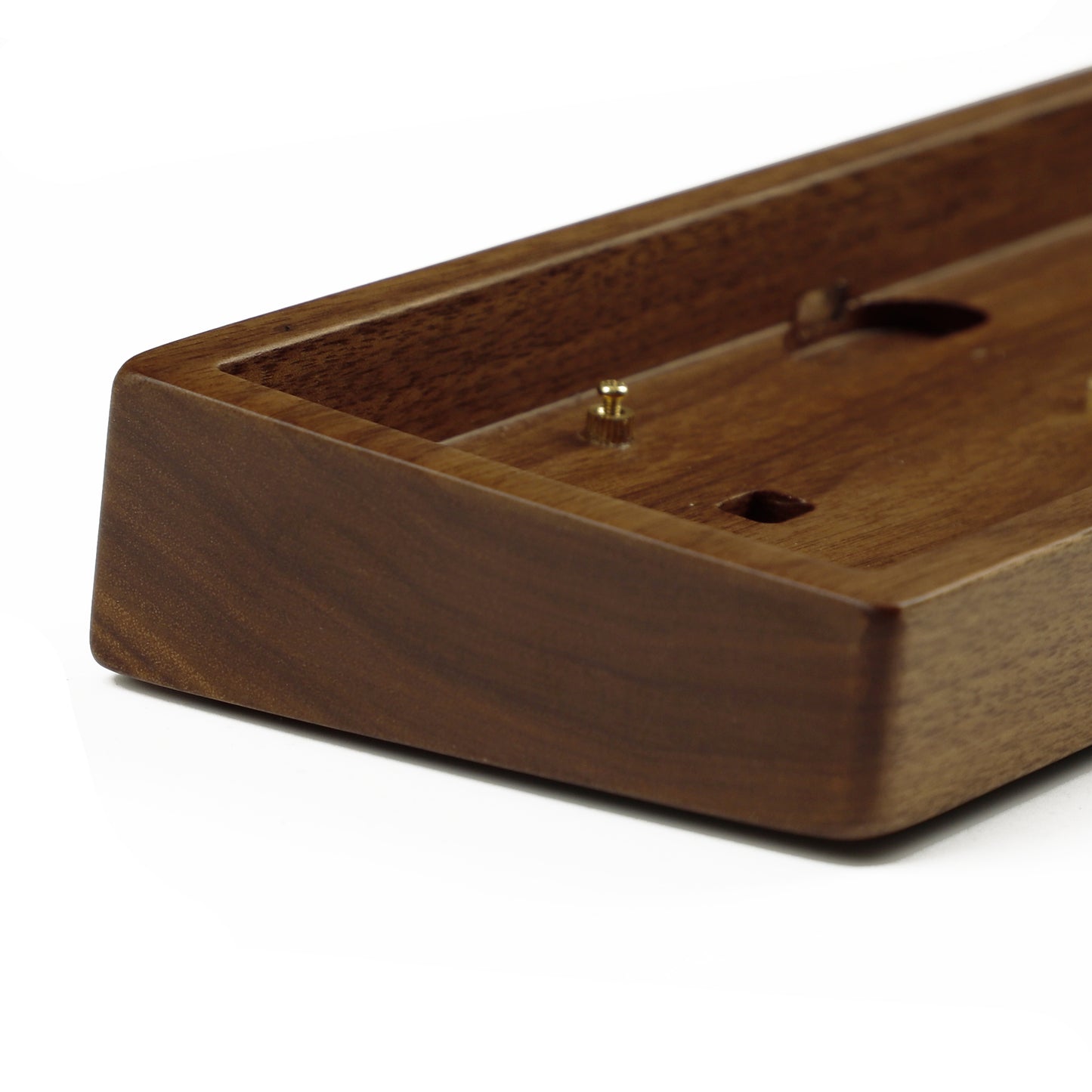

Note: walnut wood case use black plate

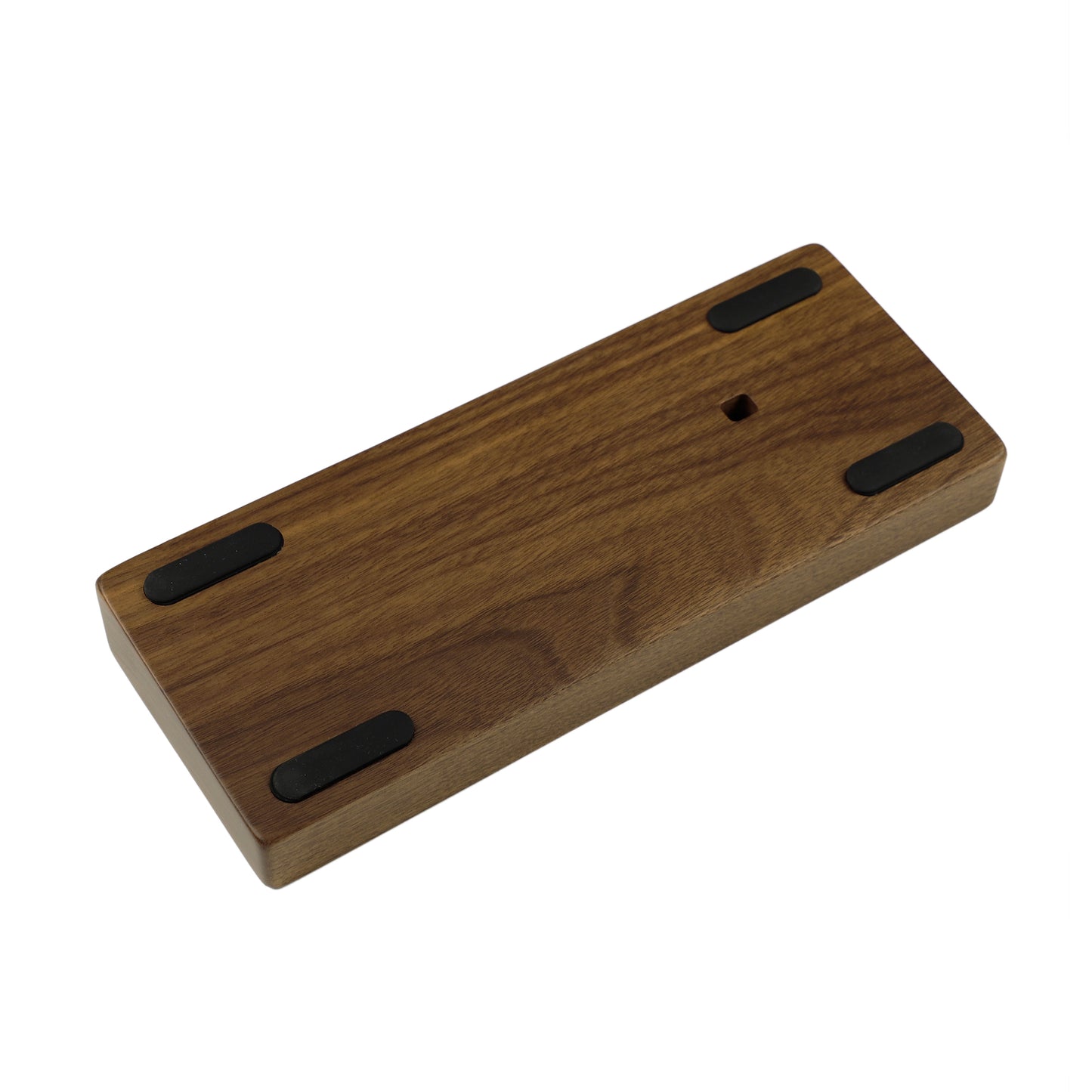

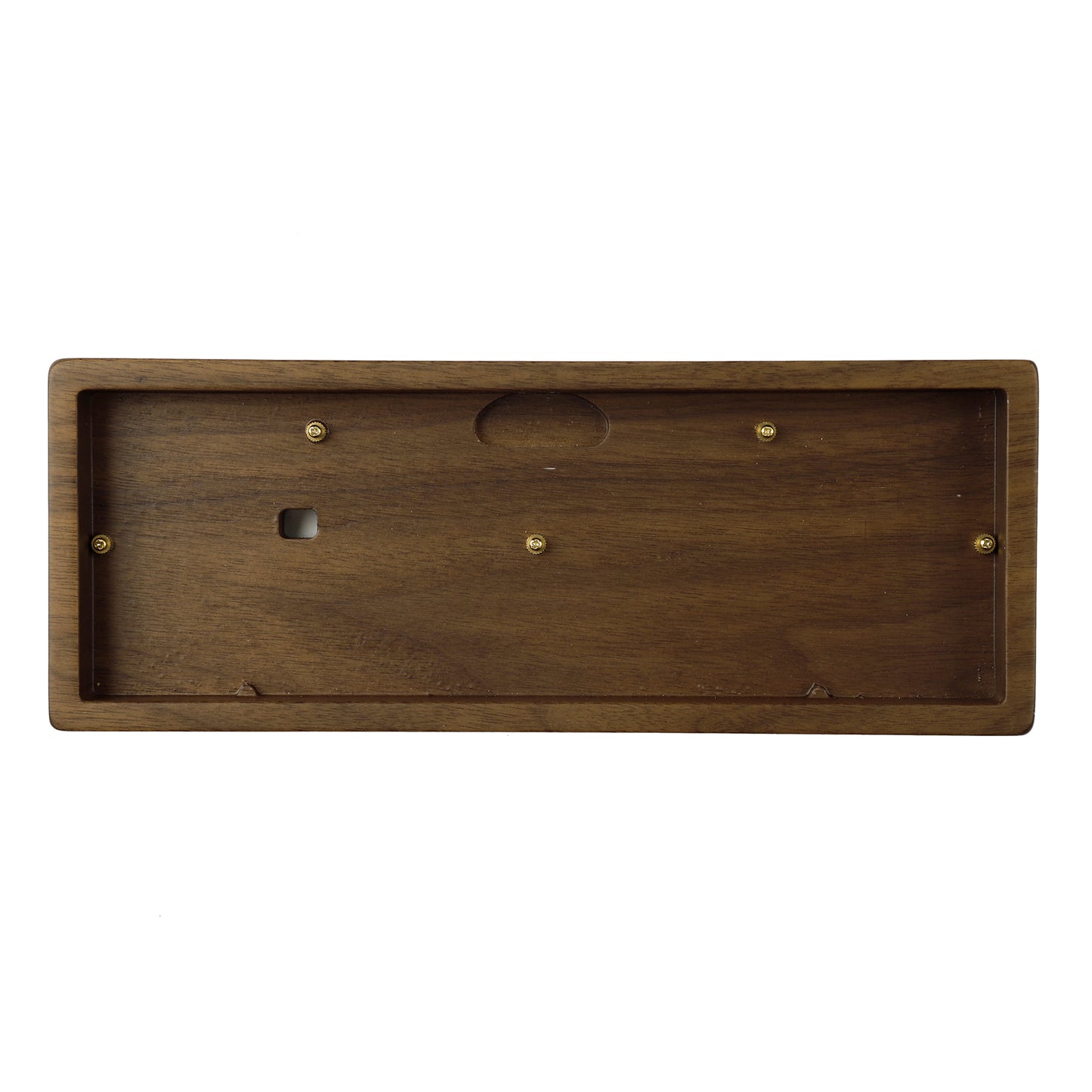

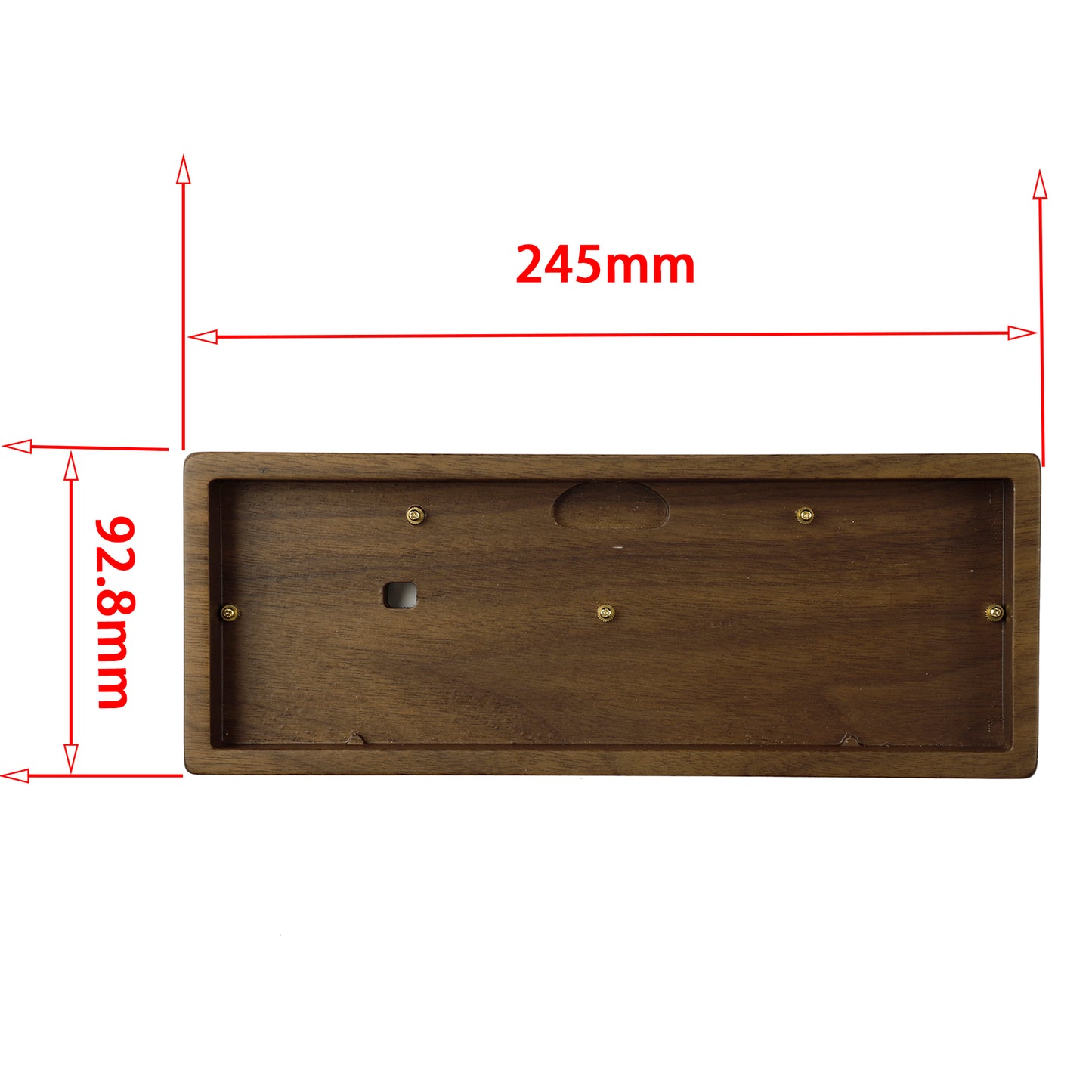

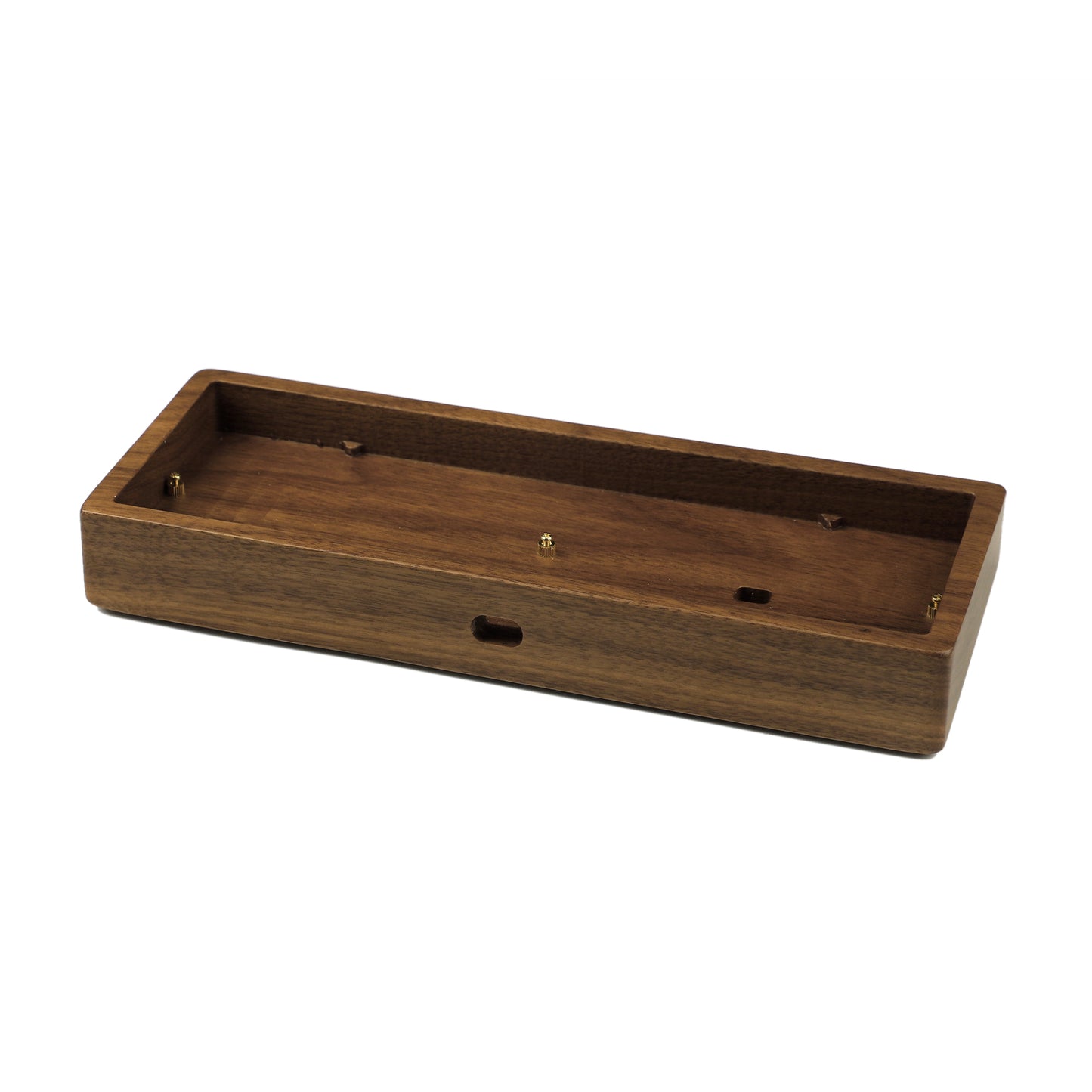

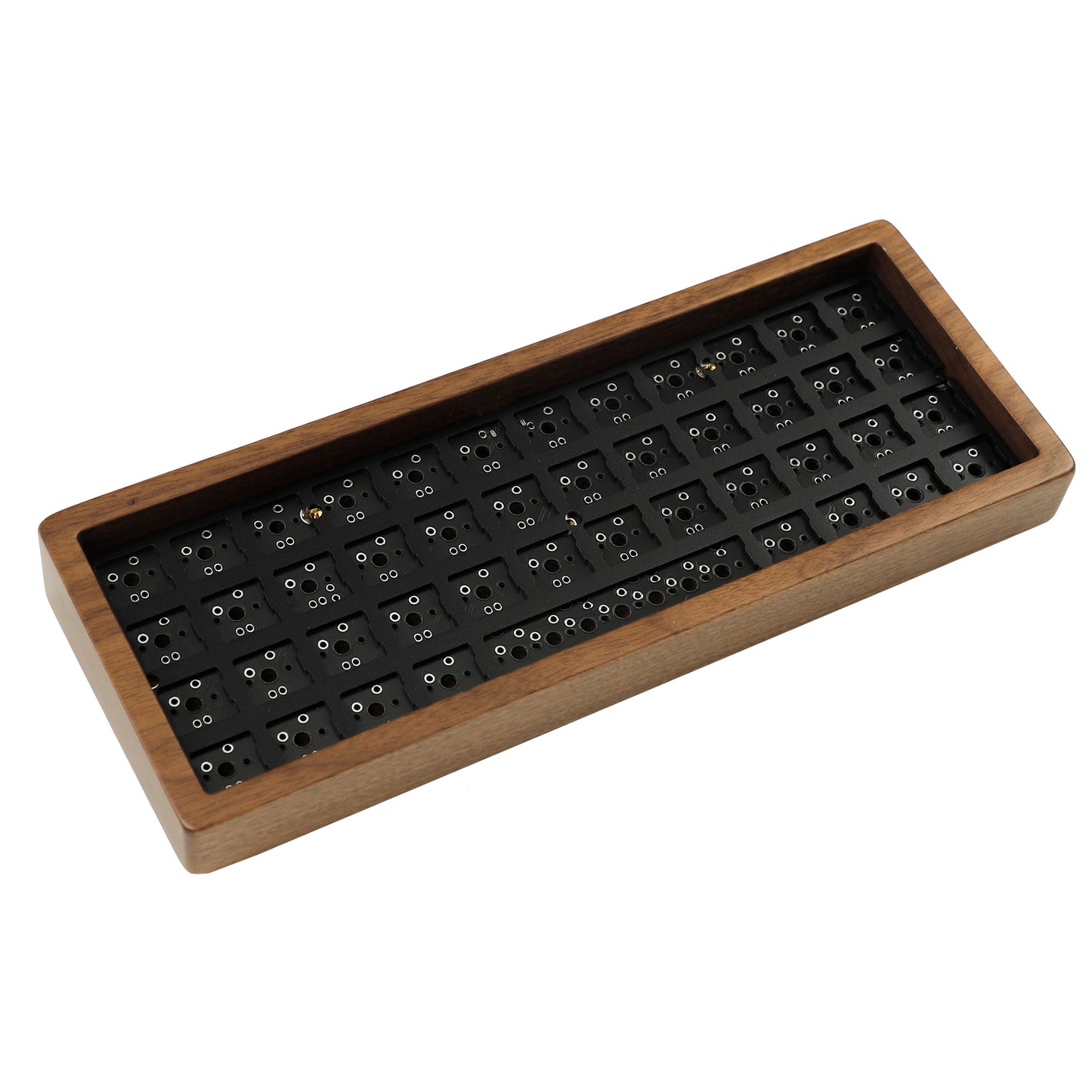

Base Kit：Wood Case + Black Alu Plate +Type C Soldering PCB + PCB Stabilizers + Screws +Rubber Feet + Cable
(No Keycaps and switch,message the layout after ordering)
Kit 1：
Wood Case + Black Alu Plate +Type C Soldering PCB + PCB Stabilizers + Screws +Rubber Feet + Cable +Switches +Assembly
(No Keycaps and switch leds,message the layout and switch type after ordering)
Switch options
Gateron black /yellow /Blue /Red /Brown /Clear /Green
Gateron Pro Yellow /Pro Red /Single phrase Clear /2 Phrase Clear /Single phrase Silver /2 Phrase Silver
Kailh Speed Silver /Copper /Bronze /Pink /Gold /Pro Purple /Pro Burgundy /Pro light green
Kailh Box White /Box Brown /Box Black /Box Red
JWK C V2 Black /v2 Blue
Kit 2
Wood Case + Black Alu Plate + Type C Soldering PCB + PCB Stabilizers + Screws +Rubber Feet + Cable +Switches +Assembly
(No Keycaps and switch leds,message the layout and switch type after ordering)
Switch options
Box Jade /Box Navy /Box Pink /Box burnt orange /Box Pale Blue /Box Dark Yellow /Box Chinese red /Box Ancient gray /Box Noble Yellow
Cherry black blue brown red
Gateron Silent Brown /Gateron Silent Red / Gateron Silent Black
Kit 3
Wood Case + Black Alu Plate + Type C Soldering PCB + PCB Stabilizers + Screws +Rubber Feet + Cable +Switches +Assembly
(No Keycaps and switch leds,message the layout and switch type after ordering)
Switch options
Box Royal /Hako Clear /Hako True /Hako Violet /Box Silent Brown /Box Silent Pink
Kailh Canary /Kailh Polia
Matcha switches
EQUALZ Tangerine V2 62g /67g
Equalz Macho Switches 62g
Cherry silver /Pink / Clear /Tactile Gray /Milk white /Silent Black
Kit 4
Wooden Case + Black Alu Plate +Type C Soldering PCB + PCB Stabilizers + Screws +Rubber Feet + Cable +Switches +Assembly
(No Keycaps and switch leds,message the layout and switch type after ordering)
Switch options : Kailh Cream / Box Cream /Gateron Ink Black /Ink Blue /Ink Yellow /Ink Red
Choose the Layout Here(Message layout 1 2 3 and switch types after ordering)

Wrist Rest Click

PCB Case Foam (If you add this,we will assemble for you) Click

Acrylic Dust Cover Click

Hot Plug (Can install if added) Click

Leds (Can install if added 10 lots) Click

DSA 75 Dye Sublimation Keyset Click

Dye Sub DSA 40 Keyset Click

ZDA Matcha Keyset Click

OEM Blank keyset Click

Details
This link is for 40% DIY YMD40 Type C mechanical Keyboard.

The PCB is fully programmable and support many layout.The case and plate is made of aluminum CNC anodized.

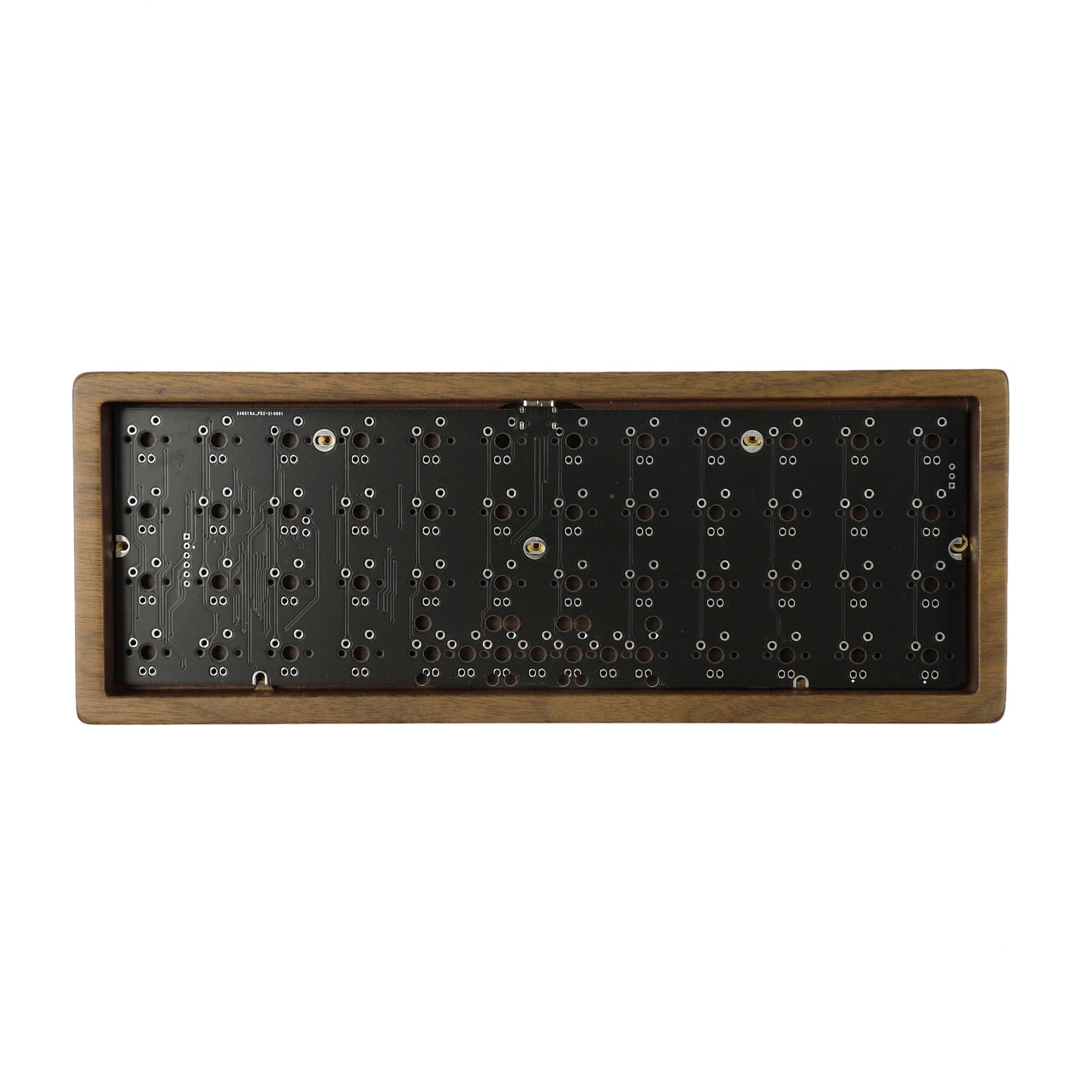

The PCB is silver pad and Type C USB port.

Has added VIA support recently.Will update manual soon.

PCB QMK manuals
drive.google.com/file/d/1EqB2ituzUpzgpGql5fx-2jothdfpdcSJ/view?usp=sharing


PCB VIA manuals
drive.google.com/file/d/1iOIfIPdORu_khqmTwSywZX6vP76q6Igo/view?usp=sharing
