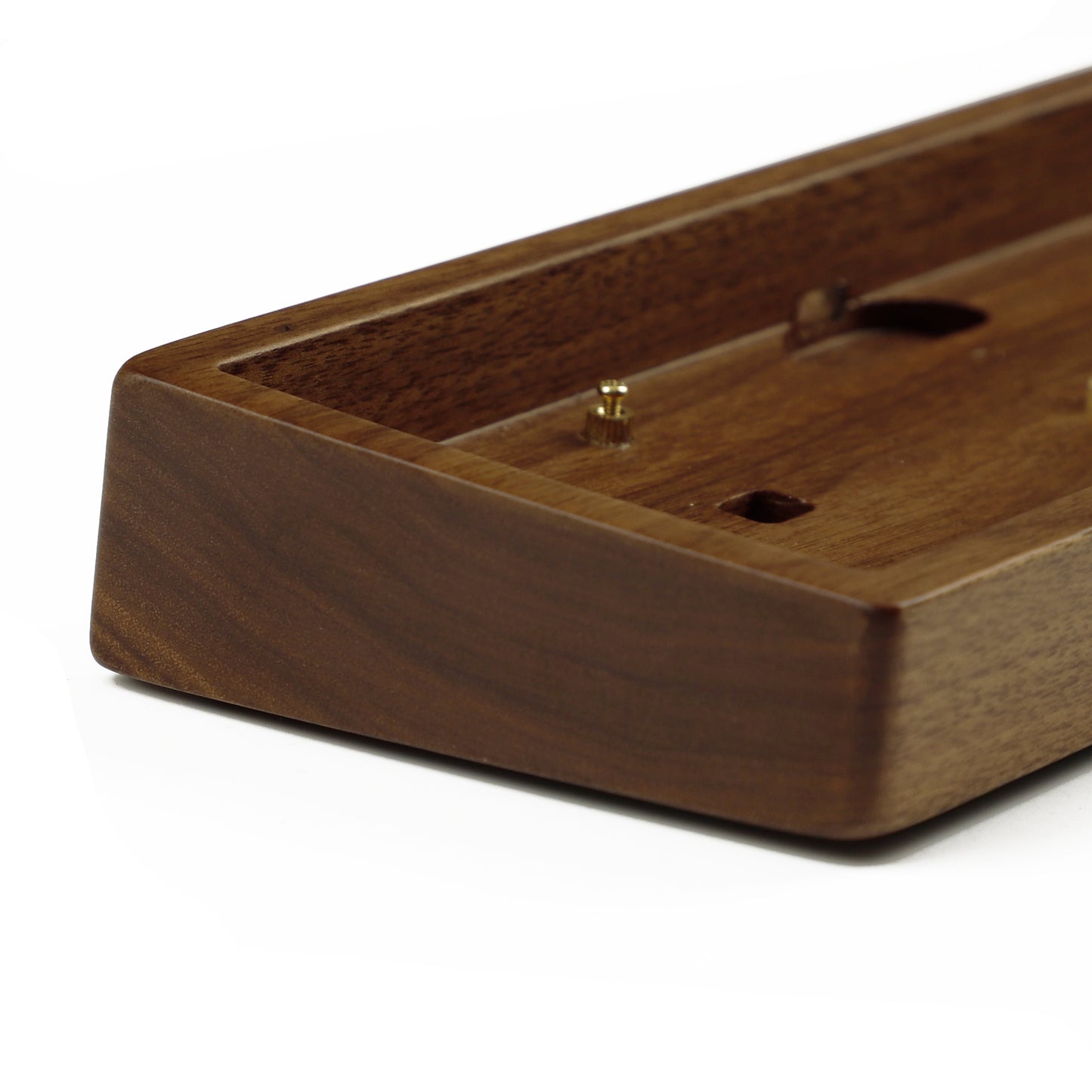

YMD40 Air40 Walnut Wood Case RGB Hot swap Kit（RGB Type C PCB Support VIA）

Package Included

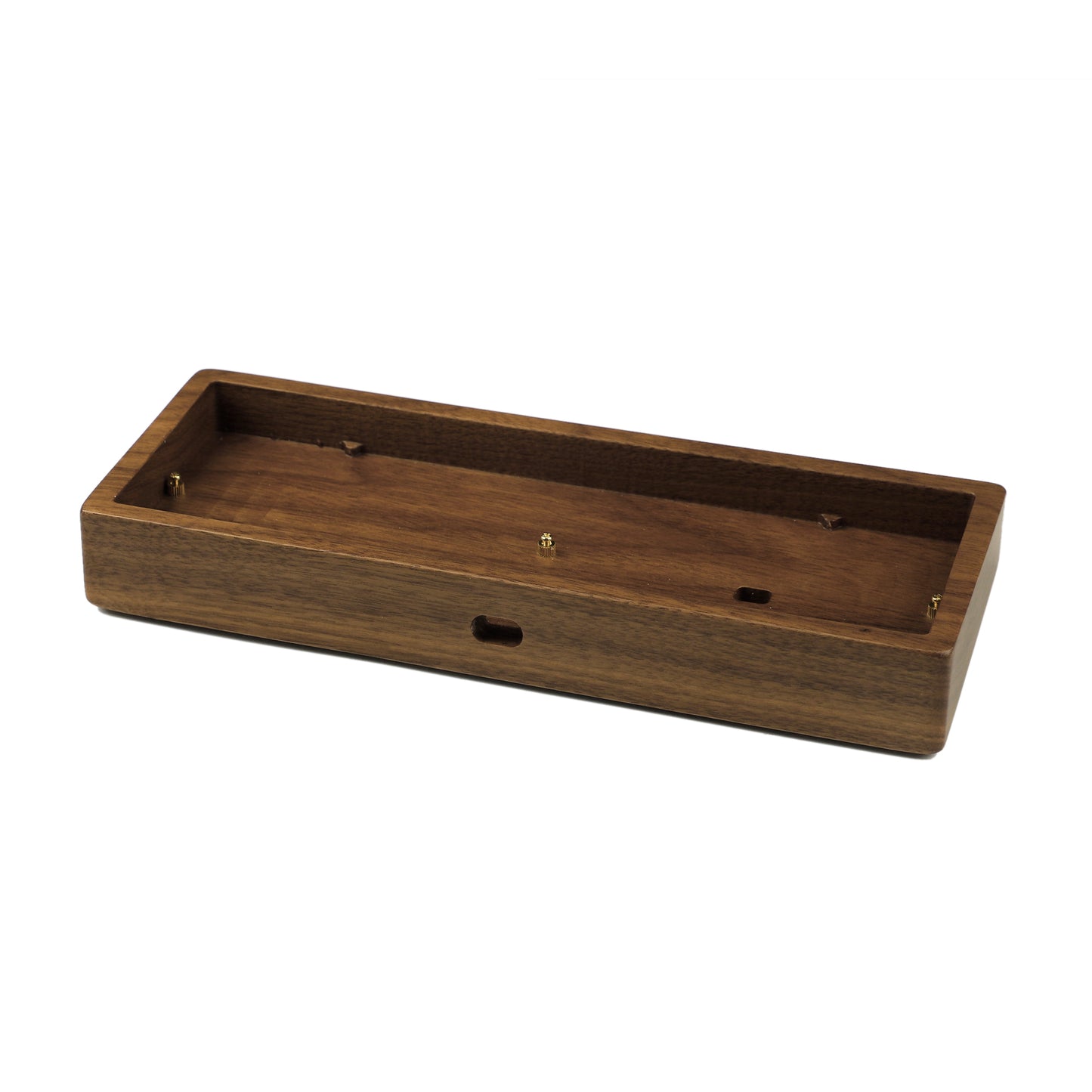

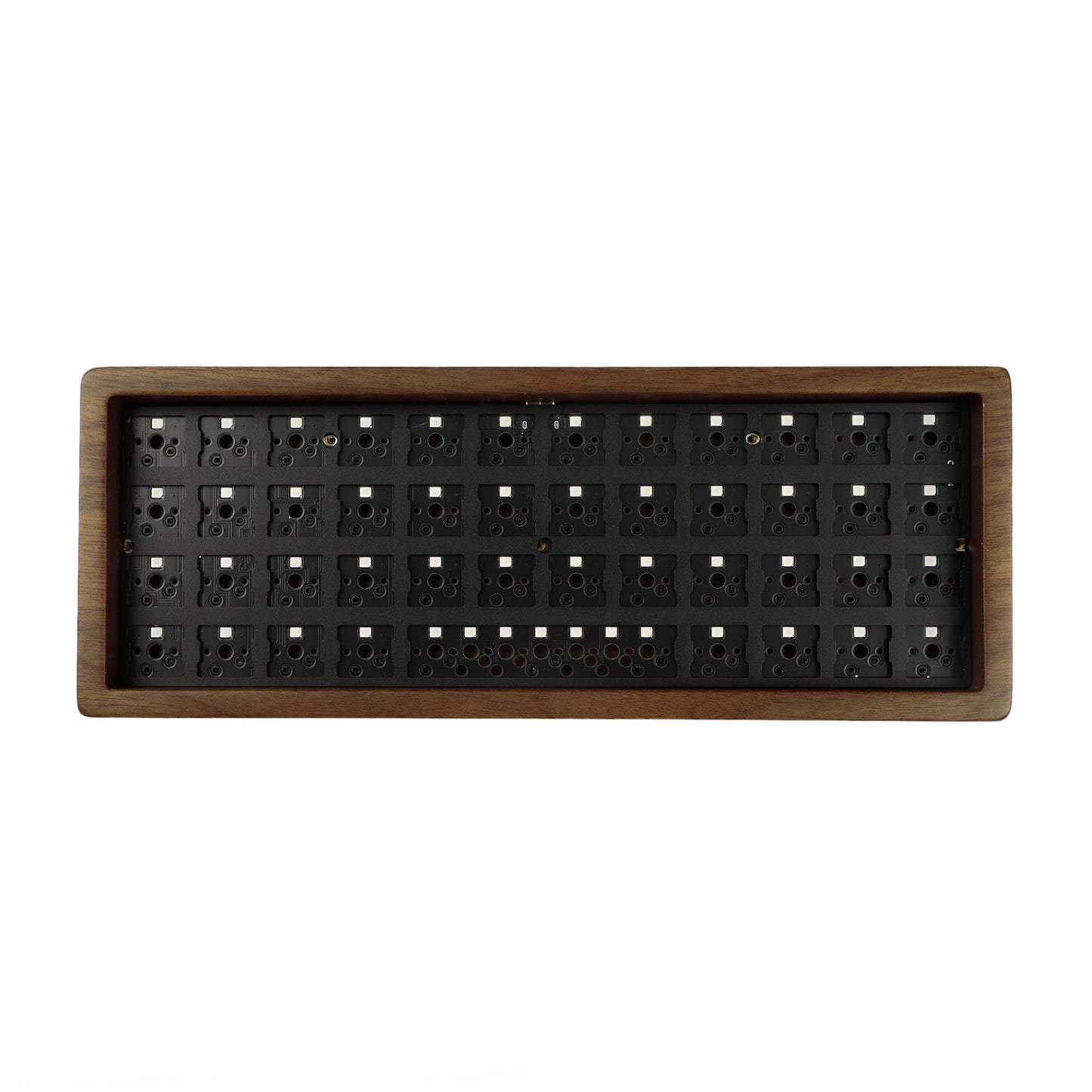

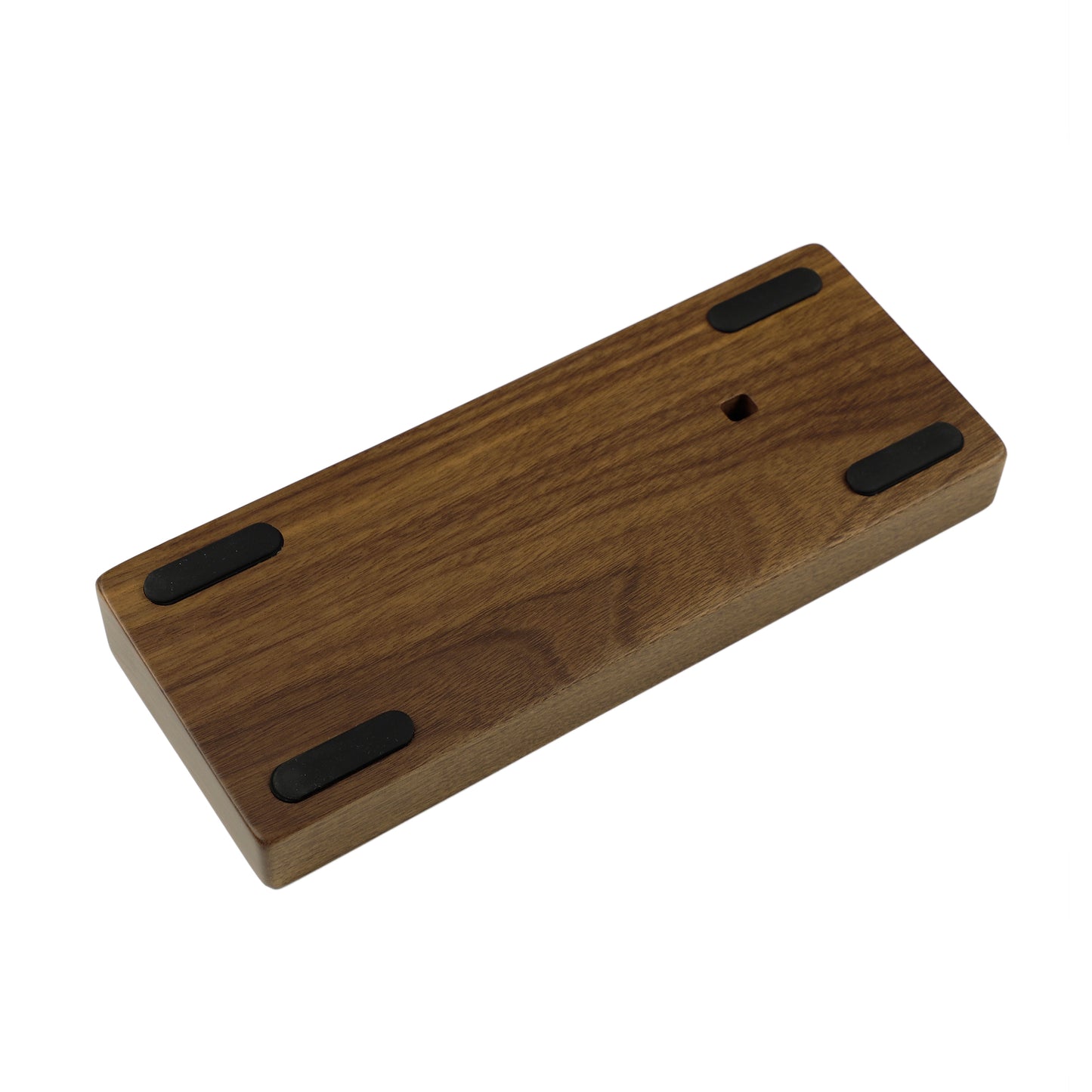

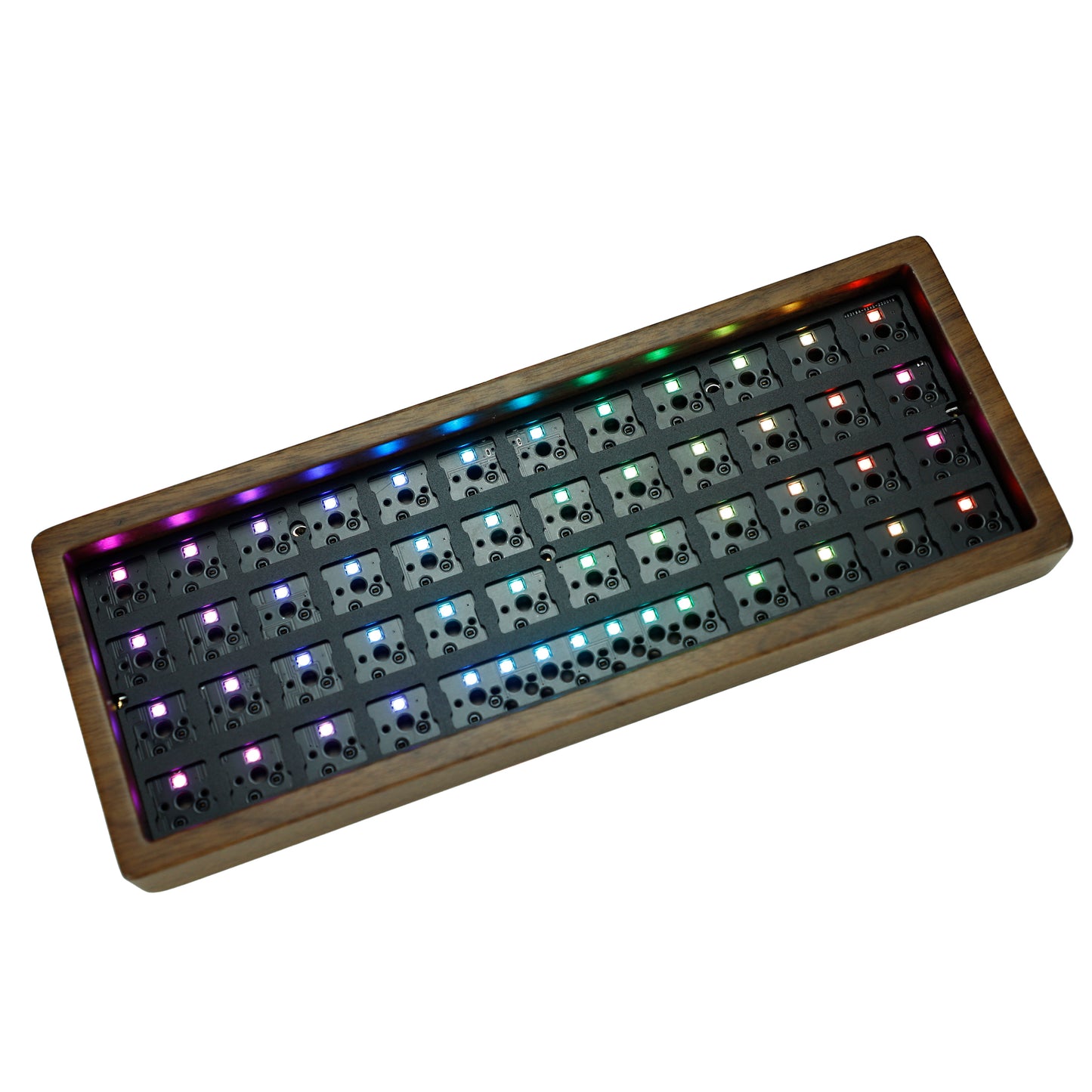

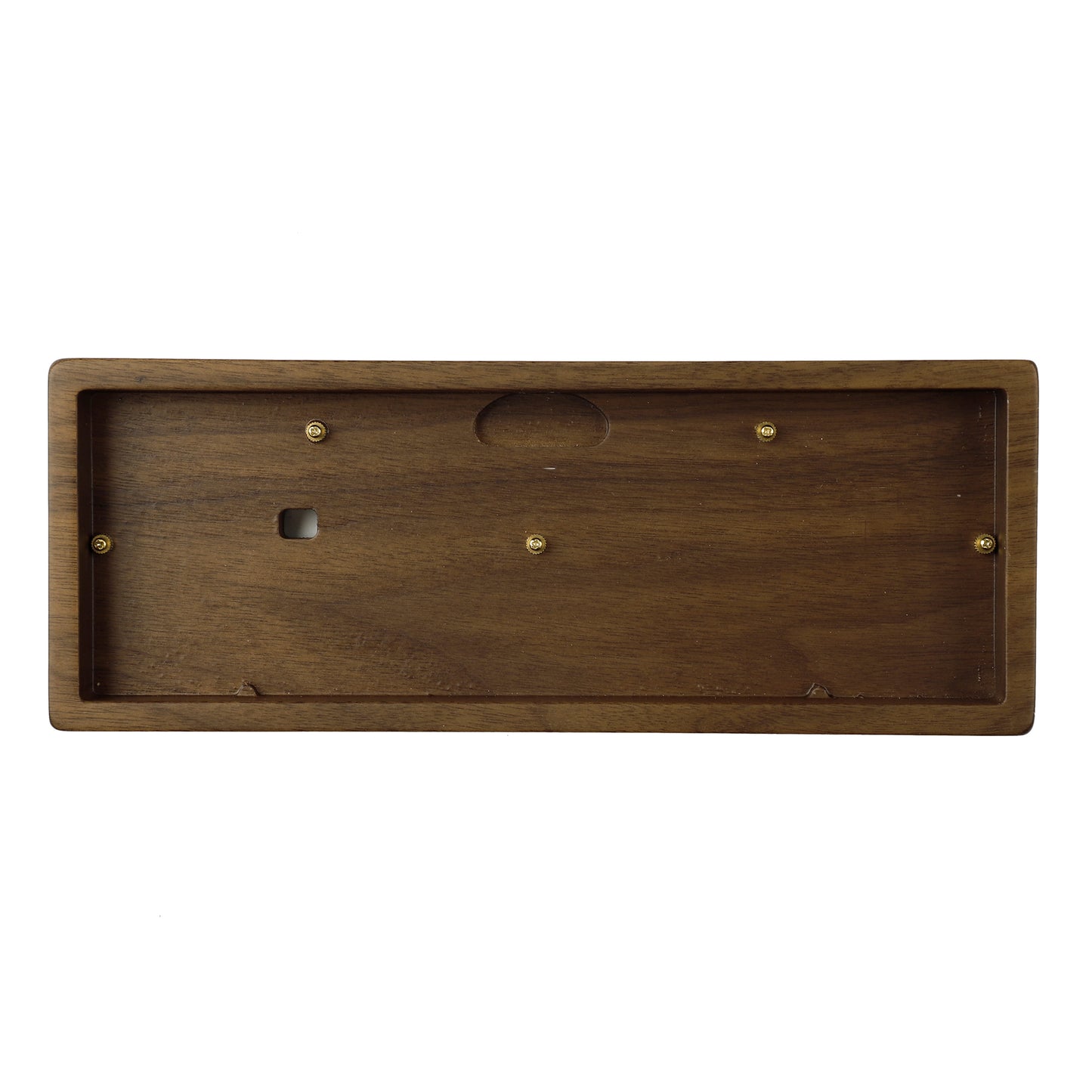

Base kit: Wood Case + Alu Black Plate +Hotswap Type C PCB with RGB switch leds+ Rubber Feet +Cable

If you need mute cotton, you can add 5usd, you can add 10pcs this link, click

(No Keycaps included,message switch type after ordering)

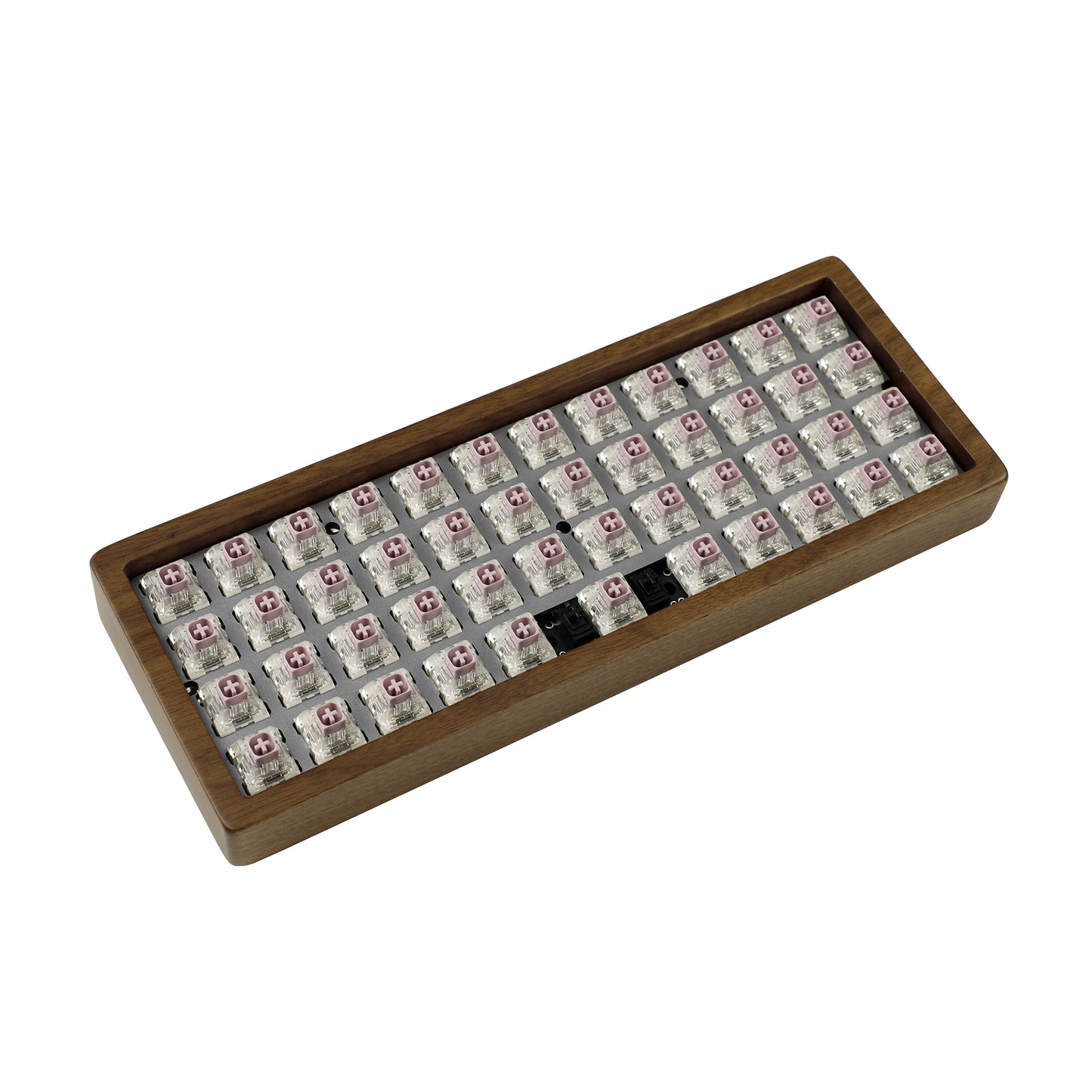

Kit 1: Wood Case + Alu Black Plate +Hotswap Type C PCB with RGB switch leds + Switches + Assembled + Rubber Feet +Cable

Kit 1 Switch options:

Gateron black /yellow /Blue /Red /Brown /Clear /Green

Gateron Pro Yellow /Pro Red /Single phrase Clear /2 Phrase Clear /Single phrase Silver /2 Phrase Silver

Kailh Speed Silver /Copper /Bronze /Pink /Gold /Pro Purple /Pro Burgundy /Pro light green

Kailh Box White /Box Brown /Box Black /Box Red

JWK C V2 Black /v2 Blue

Kit 2: Wood Case + Alu Black Plate +Hotswap Type C PCB with RGB switch leds + Switches + Assembled + Rubber Feet +Cable
Kit 2 Switch options:

Kailh Box:Crystal Jade /Crystal Navy /Crystal Pink/Burnt orange/Pale Blue/Dark Yellow /Chinese red/Ancient gray/Noble Yellow/Owl White/Red Bean Pudding/Summer

Cherry： Black/blue/brown/red

Gateron Pro 2.0：White 2 spring/Silver 2 spring

Gateron：Silent Brown/Silent Red/Silent Black/baby racoon

DNDKB JingWei



Note: Walnut case use black plate





Why we call it Air40?


This kit is designed without stabilizers needed which is on base of our YMDK Numpad kit.The tactile feeling is more smooth.It may be little little unstable compared with stabilizers mounted,however it felt more relaxable without stabilizers for 2u keys.If you care about this much,please not order it is ok


Besides,this PCB is designed to support some layout in one.If you have soldering experience,you can change layout as your wish.If you don't want to solder,can just choose 1 layout which prefer to directly when ordering

How to Assemble the kit

1.Put around 4-5 switches into plate corners and middle part.Then plug these swithces pin into PCB socket

2.After PCB plate fixed,put other switches on one by one is ok.Take care to plug in the top 90 degree and avoid to use used switches which may affect the hot socket.

3.When you meet big resistance when plugging switches in,please stop and check whether the switch pin is bent and bend it over and try again.


VIA Manuals


https://drive.google.com/file/d/1Qkl5d9mM2rJwVB2PbeaMOcToEGl7N0AM/view?usp=sharing
